awansan.com – Pasca memeperkenalkan dua truk baru di GIIAS kemarin , nampaknya PT Hyundai Oto Komersial Indonesia sudah mulai gatal mengeluarkan produk baru, kabar yang berhembus nih bahwasannya ATPM Hyundai Truck dan Bus di Indonesia ini berencana akan memasukkan dua jenis Bus di Indonesia yaitu Light Bus Hyundai H350 dan Big Bus Hyundai Universe .
Menurut awansan hal ini merupakan suatu langkah yang berani, karena kedua produk tersebut menyasar segmen luxury bus, yang notabene sudah dikuasai merk merk besar dari benua Eropa seperti Mercedes -Benz, Scania, Volvo dan MAN. Dan konsumen di kelas ini pun tentunya mempunyai standar yang cukup tinggi untuk luxury bus mereka, hmm nampaknya pasar chasis bus dalam negeri akan semakin panas persaingannya, okee yuk lanjut kita bahas satu satu 😀 .
LIGHT VAN HYUNDAI H350
Produk pertama adalah Hyundai H350, light van ini pertama kali dikenalkan pada ajang Hanover Motor Show pada tahun 2014 lalu, Modelnya Boxy sehingga menawarkan kelegaan ruang untuk 13 seat penumpang.
Hyundai H350 yang ditujukan untuk segmen untuk travel dan pariwisata. Hyundai H350 ditenagai oleh mesin diesel 2500 cc yang mampu mengeluarkan tenaga maksimal 170 ps dan torsi maksimal 373 nm yang awb rasa sangat bertenaga 😀 .
di Indonesia lawan mainnya jelass Mercedes Benz Sprinter, tapi kalau Hyundai pandai memainkan harga bukan tidak mungkin produk ini akan cukup laris, bisa ngrecokin pasar pasar dibawahnya seperti Isuzu Elf atau Mitsubishi L300 😆 .
| MODEL | H350 BUS | ||
| Seating Capacity | 13+1 Seater | ||
| Engine | A2 – Euro 5 | ||
| Type | A2 2.5L, 4 stroke-cycle, water-cooled, direct-injection diesel engine | ||
| Displacement | 2497cc | ||
| Max. Power | 170 ps @ 3,300 rpm | ||
| Max. Torque | 43 kg-m @ 1,750 rpm | ||
| Turbocharger | WGT, Intercooler | ||
| Air Filter | Dry Paper type | ||
| Fuel Tank Capacity | 75 L, Plastic | ||
| Performance (calculated) | |||
| Max. Speed | 156 kph | ||
| Gradeability (tanQ) % | 58.4 (FGR: 3.917) | ||
| Transmission | |||
| Model | T045S6 6-Speed MT | ||
| TGS | Dashboard Shift, Mechanical remote control | ||
| Chassis | |||
| Frame | U-type Longitudinal Side frame with cross members | ||
| Steering | 4-Spoke, Rack & Pinion Type, Tilt & Telescopic steering column | ||
| Suspension | Front | McPherson Strut type Independent Suspension with transverse leaf | |
| Rear | Rigid-type (parabolic leaf spring) | ||
| Shock Absorber | Twin-tube Gas charged type on the front & rear | ||
| Brakes | Service Brake | Hydraulic with vacuum servo assistance, dual circuit with Pad auto adjuster and Disc pad indicator (electric) | |
| Parking Brake | Internal expanding type at the rear wheel (DIH : Drum In Hat) | ||
| Tire | 235/65 R16C – 8PR | ||
| Wheel | 16 x 6.5J Alloy | ||
| Weight | |||
| Curb Weight | kg | 2,662 | |
| GVW | kg | 4,100 | |
| Dimensions | |||
| Wheelbase | mm | 3,670 | |
| Overall | Length | mm | 6,195 |
| Width | mm | 2,038 (2,436 with mirrors) | |
| Height | mm | 2,665 (Roof panel), 2,673 (Hatch), 2,856 (A/con) | |
| Overhang | Front | mm | 990 |
| Rear | mm | 1,535 | |
| Min. Ground Clearance | 185 | ||
| Exterior | |||
| Body type | Monocoque type | ||
| Windshield Glass | One piece type with laminated safety glass | ||
| Windshield Wipers | Electric three-speed (intermittent / low / fast) wipers & washer | ||
| Outside rear view mirror | Heated / electrically operated with Side repeater | ||
| Side glass | Side Rear End Swivel Glass | ||
| Rear glass | One piece type with tempered glass | ||
| Bumper | Frt/Rr | Black Colored Bumper | |
| Door | Front Door | Manual swing type | |
| Mid Door | Side Sliding Door (Manual Type) | ||
| Rear Door | Manual Twin Swing Door (180˚) | ||
| Head lamps | MFR-type + DRL + H/lamp leveling device | ||
| Combination Lamps | Front | Turn signal / Hazard-Amber, Position – White | |
| Rear | Turn signal / Hazard-Amber, Tail / Stop – Red | ||
| Interior | |||
| Driver’s Seat | Sliding, Reclining, Height Adjustable, Headrest + Armrest | ||
| Assistant’s Seat | Sliding, Reclining, Headrest | ||
| Passenger’s Seat | Reclining, Headrest, Seat Back Handle, Seat back pocket | ||
| Seat Material | Simulated Leather | ||
| Sunvisor | Driver: Folding Type with Shelves | ||
| Roof Covering | HS felt + Non-woven felt | ||
| Side Material | UPR: Plastic, LWR: HDF | ||
| Floor Covering | Linoleum mat | ||
| Instrument Meter | Speedometer with odometer & trip counter / Combined meter including fuel & water temperature gauges |
||
| Power Features | Central Door Locking, Power Windows (Front) | ||
| Electric Power Step | with (Mid Door) | ||
| Audio System | M300 (Radio + USB (MP3)), Roof Speaker (Passenger) | ||
| Airconditioning System | Manual Type Heater Control with Roof In A/C | ||
| Safety & Security | |||
| Airbag | Driver Airbag | ||
| A.B.S. | with (Anti-lock Braking System) | ||
| V.D.C. (Vehicle Dynamic Control) | with | ||
| Seatbelts | Driver: with Pretensioner Seatbelt | ||
| Keyless Entry with Alarm | with | ||
| Tacograph | Digital | ||
| Rear Parking Assist | with | ||

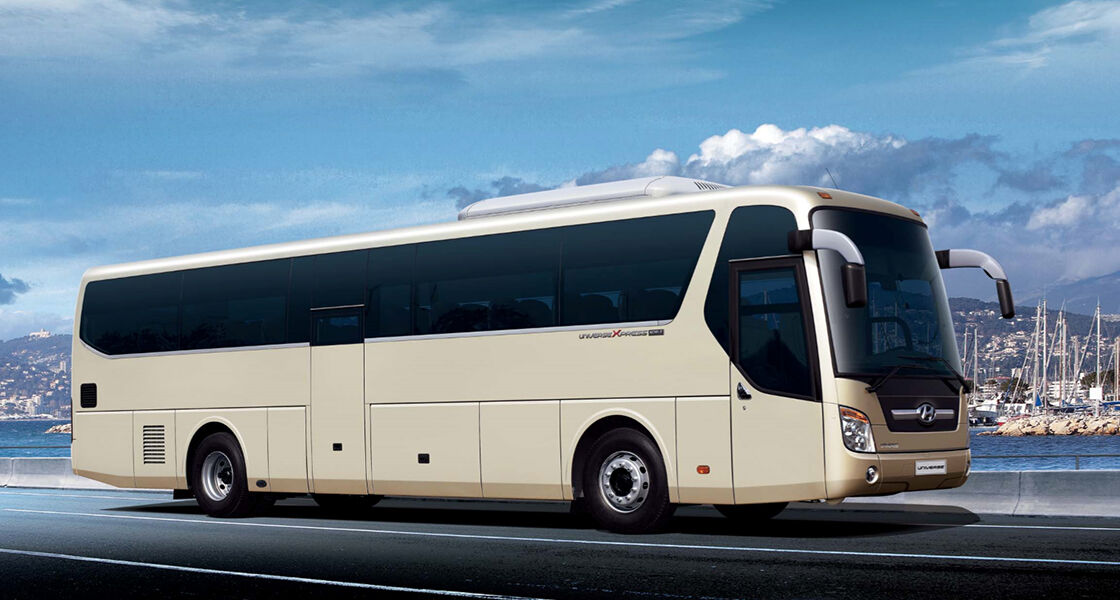

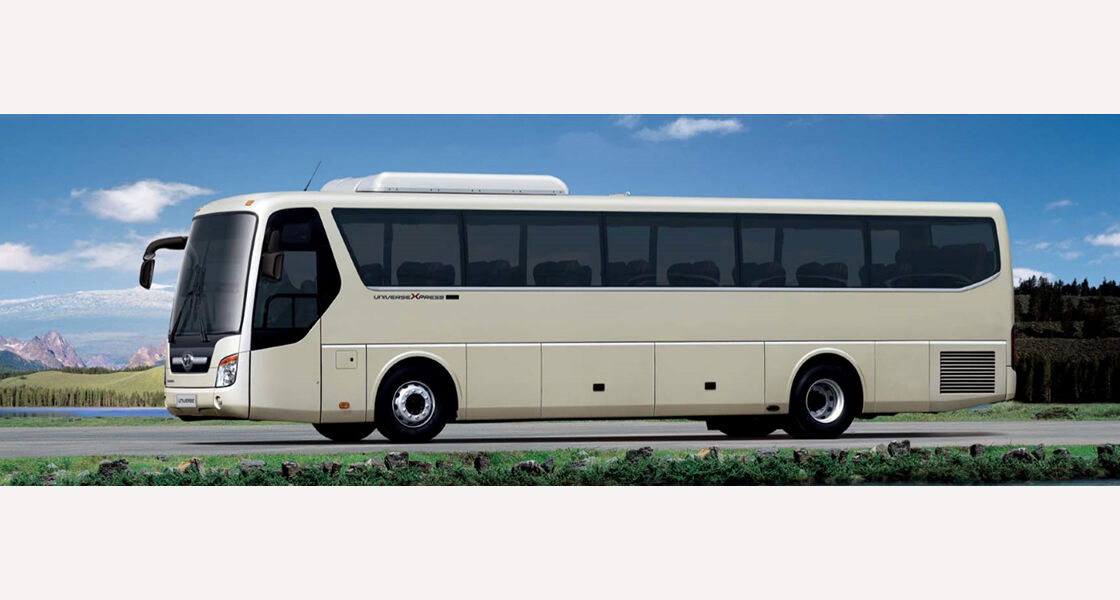

BIG BUS HYUNDAI UNIVERSE
Produk kedua yang akan masuk adalah Hyundai Universe. Well Hyundai universe sendiri merupakan Top Of The Line dari Big Bus produksi Hyundai. sebagai top of the line tentunya Hyundai sudah membekali bus ini dengan seabrek fitur agar dapat bersaing dengan kompetitornya, bukan hanya fitur ABS, ASR dan Retarder saja, tapi bahkan fitur autogrease lubrication, untuk melumasi bagian bagian tertentu dari bus secara otomatis.
Hyundai Universe dibekekali dengan mesin diesel turbo intercooler berkpasitas 12.300 cc, dengan muntahan tenaga hingga 380 ps @1900 rpm, dan torsi maksimal 1480 nm @1200 rpm, yang menurut awb sudah lebih dari cukup untuk bus ini. namun belum jelas apakah besok bus ini akan dirakit secara CKD seperti jaman Korindo dulu, atau hanya mau measukkan chasisnya saja kemudian dikaroseri disini 😀 .
Berkaca dari kasus korindo , nampaknya Hyundai punya PR besar untuk memasukkan produk yang mempunyai durabilitas tinggi sesuai dengan kebiasaan orang indonesia, selain itu ketersediaan dan kemudahan untuk memperoleh suku cadang juga harus diperhatikan, tanpa dua faktor tersebut maka nampaknya Hyundai Truck dan Bus Indonesia akan sulit bertahan dan berkembang di negeri ini.
SPESIFIKASI HYUNDAI UNIVERSE
| Seating Capacity | 49+1 Seater | ||
| Engine | D6CC EURO-4 | ||
| Type | 6 in-line, Electronic Diesel | ||
| Displacement | 12,300cc | ||
| Max. Power | 380 ps @ 1,900 rpm | ||
| Max. Torque | 148 kg-m @ 1,200 rpm | ||
| Turbocharger | Turbo Charger Intercooler | ||
| Air Filter | dry paper element | ||
| Fuel Tank Capacity, L | 310 L | ||
| Performance (calculated) | |||
| Turning Radius, m | 10.1 | ||
| Gradeability (tanQ) % | 45 | ||
| Clutch | |||
| Type | Hydraulic control with air assisted, Single dry plate | ||
| Facing Material | Non-Asbestos | ||
| Transmission | |||
| Model | M12S5-R | ||
| Type | 5 foreward & 1 reverse | ||
| Electrical System | |||
| Battery | 24V-200AH | ||
| Alternator | 24V-180A | ||
| Starter | 24V-6.0KW | ||
| Chassis | |||
| Frame type | Monocoque | ||
| Main Section | Front (HxWxt) | 180 x 90 x 3.2 t | |
| Rear (HxWxt) | 200 x 80 x 4.5 t | ||
| Steering | Ball-nut type with integral hydraulic power booster, tilt & telescopic | ||
| Suspension (Front/Rear) | air suspension | ||
| Shock Absorber | Hydraulic double acting telescopic type on axles | ||
| Brakes | Service Brake | Full air, dual circuit, fixed ‘S’ cam with spring loaded chambers | |
| Parking Brake | Spring loaded type parking brake on the rear wheels | ||
| Tire | 11R22.5-16PR | ||
| Axle | Front | Reverse Elliot type ” I ” beam | |
| Capacity (kg) | 7,000 | ||
| Rear | Full Floating Type | ||
| Capacity (kg) | 11,500 | ||
| Weight | |||
| Empty Weight (kg) | 11,975 | ||
| GVW (kg) | 18,500 | ||
| Dimensions | |||
| Wheelbase | mm | 5,850 | |
| Overall | Length | mm | 11,780 |
| Width | mm | 2,495 | |
| Height | mm | 3,340 | |
| Overhang | Front | mm | 2,690 |
| Rear | mm | 3,240 | |
| Min. Ground Clearance | 200 | ||
| Exterior | |||
| Body type | Monocoque | ||
| Windshield Glass | Two pieces type with laminated safety glass | ||
| Windshield Wipers | Electric high & low speed, wiper with intermittent relay and washers operated electrically | ||
| Outside rear view mirror | Deluxe type on both sides | ||
| Side glass | Full fixed type with tempered glass | ||
| Rear glass | One section type with tempered glass | ||
| Wheel cover | with | ||
| Bumper | SMC (sheet moulding compound) | ||
| Door | Front | Auto Swing | |
| Head lamps | MFR type | ||
| Fog Lamp | with | ||
| Combination Lamps | Front | Turn signal/Hazard-Amber, Position-White | |
| Rear | Turn signal/Hazard-Amber, Tail/Stop-Red | ||
| Interior | |||
| Driver’s Seat | Adjustable up & down, fore-and-after reclining seat formed polyuretane cushion, covered with vinyl | ||
| Passenger’s Seat | Steel tube framing reclining type with vinyl leather covering | ||
| Sunvisor | Roll curtain type, left hand side above windshield glass | ||
| Shelves | Type | Board type | |
| Floor Covering | Linoleum mat | ||
| Room Lamp | Fluorescent | ||
| Reading Lamp | with | ||
| Clock | Analogue | ||
| Instrument Meter | Speedometer with Odometer | ||
| Tachometer | Electronic Type | ||
| Digital Tachograph | with | ||
| Audio System | Radio | ||
| Curtain Rail | with | ||
| Airconditioning System | Roof In A/C | ||
| Luggage Compartment | with | ||
| Safety | |||
| Seatbelts | 3-Point ELR (Driver) | ||
| Speed Limiter -100km/h | with | ||
| ABS +ASR | with | ||
| Auto grease lubrication | with |
